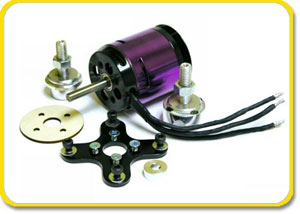

A50 Outrunner Series A50 10S A50 12S A50 16S Kv (rpm/V) 580 500 380 Max Power (W) 1250W 1250W 1250W Max Amp (15sec) 55A 55A 55A Max Efficiency 85% 85% 85% Io (No load A) 3.1A 2.5A 2A Rm (Resistance) 0.012Ohm 0.016Ohm 0.024Ohm Shaft Diameter 6mm 6mm 6mm Gearbox N/A N/A N/A Motor Diameter 48mm 48mm 48mm Motor Length 56.8mm 56.8mm 56.8mm Motor Weight 370g 370g 370g Built in Fan Yes Yes Yes Max Rpm 13,000 13,000 13,000 Poles 14 14 14 Case Outrunner Outrunner Outrunner ESC Timing 20-25 deg 20-25 deg 20-25 deg ESC Switching Freq. 8-16KHz 8-16KHz 8-16KHz Note: For Tru-Turn spinners use TT-0823 Prop Nut Adapter (8x1.25mm)

Model type Model name Motor Controller Cells Prop Sport .40 Piper Cub 40 A50 10S Jeti Spin 44 FP5000 4S Li-poly 13x10 APC-E Sport Pylon .40 Sundowner 50 A50 10S Jeti Spin 66 FP3700 6S Li-poly 12x12 APC-G Sport Aerobatic .40 GP Super Sportster A50 12S Jeti Spin 44 FP5000 5S Li-poly 13x10 APC-E Pattern .40 GP Venus 40 A50 12S Jeti Spin 55 FP3700 5S Li-poly 13x10 APC-E Fun-Fly .40 Diablotin Super A50 16S Jeti Spin 55 FP5000 5S Li-poly 17x8 APC-E Sport Aerobatic .40 Ultra Stick 40 A50 16S Jeti Spin 55 FP5000 5S Li-poly 15x10 APC-E Sport .40 Sig Rascal 40 A50 16S Jeti Spin 44 FP3700 5S Li-poly 14x10 APC-E Aerobatic/3D .50 Inspire 60 A50 16S Jeti Spin 66 FP3700 6S Li-poly 16x10 APC-E

Video:
H9 B-25J Mitchell - 43.8MB

Flash Video:



Hangar 9 B-25J Mitchell
Flying time: 8-10 minutes
Wingspan: 80 3/4" (2050mm)
Length: 63" (1600mm)
Weight: 15.5 lbs. (7000g)
Power: (2) Hacker A50 10S, 3 Blade 12x8 props, FP5000 5S Li-poly
