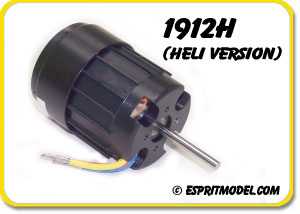

Neu 1912 Heli 1912H/1Y 1912H/1.5Y Kv (rpm/V) 825 540 Max Power (W) 2500W 2500W Max Amp (15sec) 68A 68A Max Efficiency 85% 85% Io (No load A) 1.6A 1.2A Rm (Resistance) 0.011Ohm 0.03Ohm Shaft Diameter 5mm 5mm Gearbox N/A N/A Motor Diameter 56mm 56mm Motor Length 70mm 70mm Motor Weight 405g 405g Built in Fan Yes Yes Max Rpm 30,000 30,000 Poles 8 8 Case Smooth Smooth ESC Timing 5-10 deg 5-10 deg ESC Switching Freq. 11-13KHz 11-13KHz
Model Type Model Name Motor Controller Battery Pack Prop/Pinion 3D Extreme Heli Mikado Logo 14 1912H/1Y w/fan Jazz 55-10-32 EM4500 10S Li-poly 10T Pinion 3D Extreme Heli Mikado Logo 600 1912H/1Y w/fan Jazz 55-10-32 EM3700 10S Li-poly 13T HB Pinion
