Wingspan:
80.5" (2045mm)
|
Length:
60.5" (1540mm)
|
Weight:
12-14 lbs. (5450-6355g)
|
4,6 channels
|
Good:
E-Flite Power 160, 17x12
Better:
Hacker A60 22S, 17x12
Engine: 1.2-1.8
TP5000 10/12S
82mm/3 1/4" spinner
|

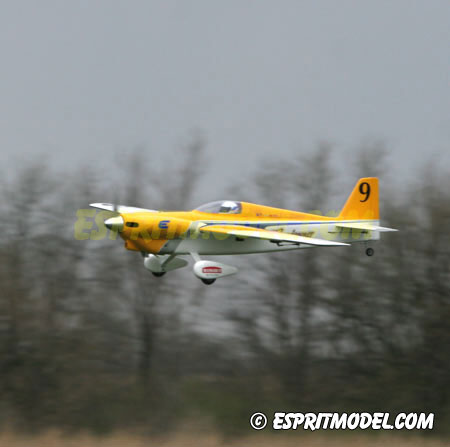

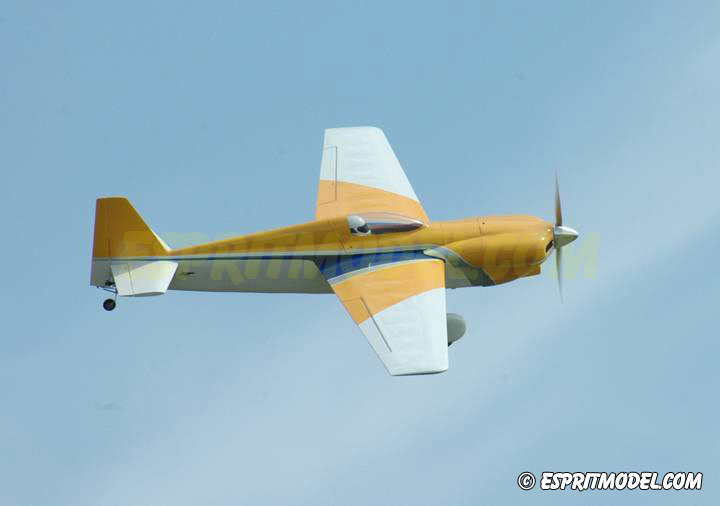

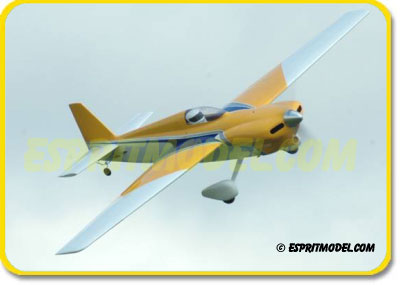

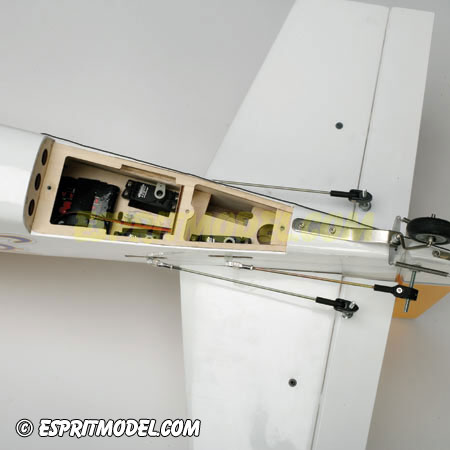

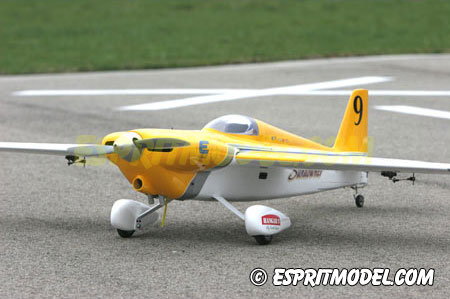

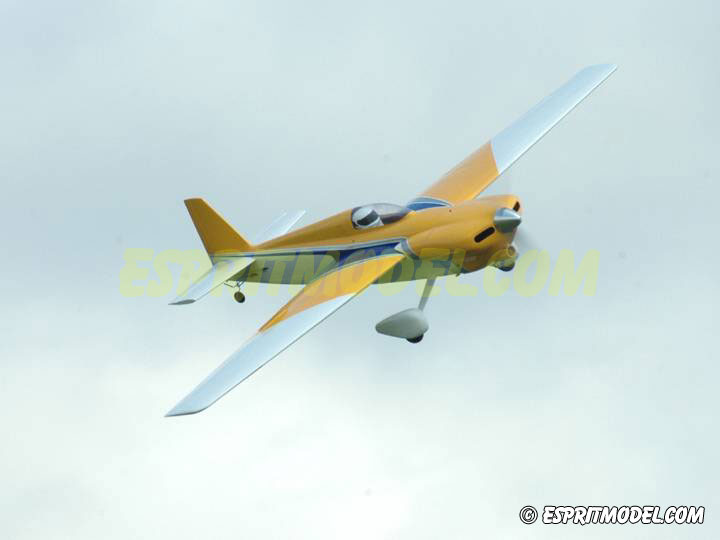

Hangar 9's giant-scale legal Sundowner Formula 1 80" ARF is a true sport performer with an aggressive racer fuselage design that makes it look like it's traveling 100 mph even when it's standing still. This sport performer looks great, down low on the deck. And then, experience a high-flying adrenaline rush as this spirited, agile racer streaks into a turn at high speed. Because of its smooth flight characteristics and precise sport handling, pilots will feel comfortable even at 120+ mph, making the Sundowner the perfect plane for entry-level giant-scale racing. Although the Sundowner is characterized as a racer because of its fiery body design, it is truly a sport aerobatic model geared for performance. The 1.8 size Sundowner can be powered for performance using a variety of gas or glow engines, or converted to electric power for clean, no-fuss flying. The two-piece plug-in wings and stabilizers make transportation of this giant-scale aircraft a more compact process. A removable top hatch provides admittance to the plane's interior, and the servo hatch located at the rear of the plane provides access to the rudder and elevator servos. This ARF includes high-quality giant-scale hardware and aluminum wing tubes which provide extreme durability at low weight. Manufacturer even outfits the Sundowner with a lightweight, painted pilot figure, complete with racing helmet.
Because of its smooth flight characteristics and precise, sport handling, even intermediate pilots will feel comfortable behind the sticks.
Special Features:
- Control surfaces: Ailerons, Elevator and Rudder
- Step-by-Step instruction manual

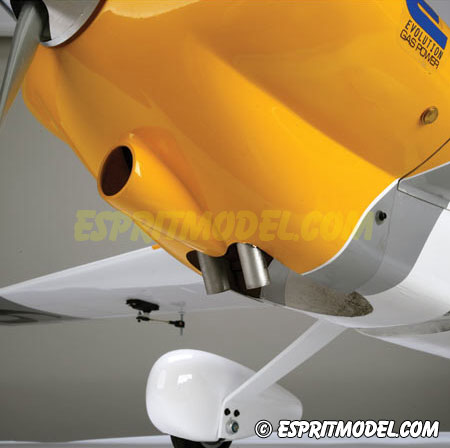

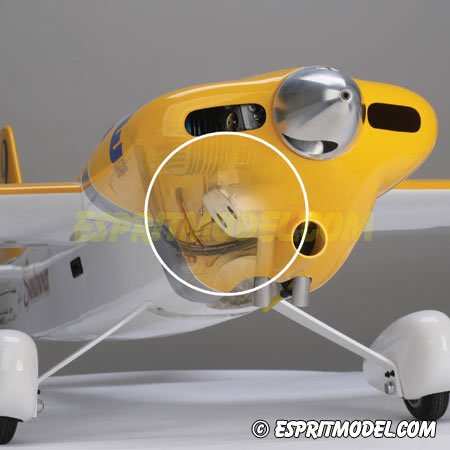

- Pre-painted fiberglass cowl and wheel pants

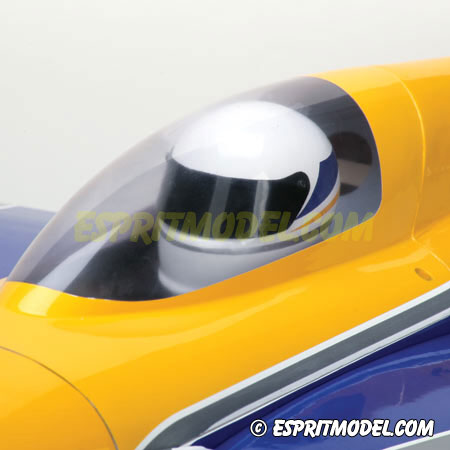

- Helmet-head pilot figure included

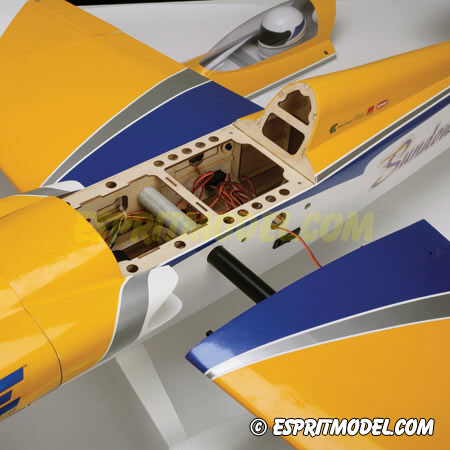

- Removable top hatch for easy access
- Glow or electric option right out of the box
- Two piece plug-in wings and stabilizers
- Tailwheel set, fuel tank, engine mount included
- Complete hardware package
- Custom decal sheet
More Information (links):
* Building Instructions
| Airfoil |
: |
Symmetrical |
| Wing area |
: |
935 sq.in. |
| Wing loading |
: |
31 oz/sq.ft. |
| Empty weight |
: |
111 oz. (3150g) |
Video:
Sundowner Formula 1 - 61.3MB
Flash Video:
Suggested Equipment:
(1) O.S.Max 1.6 FX engine
(1) Slimline Pitts Style 160 muffler
(1) APC 17x12 propeller
(1) Hacker A60 22S
(1) Aluminum mount A60
(1) Spin 99 ESC
(1) TP5000 12S battery (6S + 6S)
(1) Duralite 6V (Rx voltage regulator)
(1) Thunder Power Rx 2600 2S battery
(5) HS-5485HB servo
(1) HS-425BB servo (w/engine)
(1) Tru-Turn 3 1/4" aluminum spinner (P-51 shape)
(1) TT-0814 prop nut (Hacker A60 22S)
(1) APC-E 17x12 propeller
(1) Deans connector
(1) Deans serial connector 2S
(3) 18" Servo extension
(2) 12" Servo extension
(1) 6" Servo extension
(2) Servo Y-harness
(2) Velcro strap (Esprit)
|
