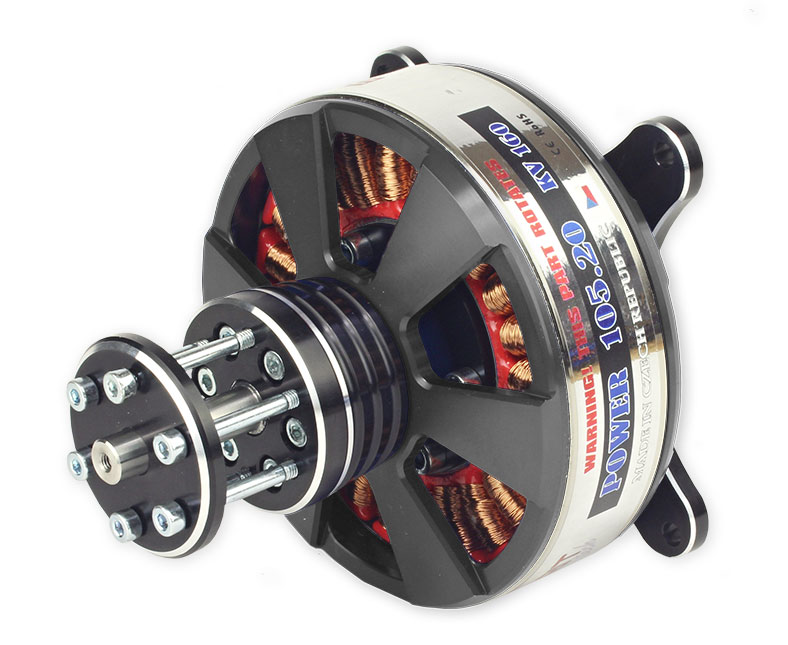

Esprit Elite 120cc E105/20-135 3D HD Outrunner Brushless Motor w/Telemetry |
Part: MAR-E10520-135
|
|
|
|
E105/20 HD Series |
Elite 120cc 135 3D |
| Kv (rpm/V) |
135 |
| Max Power (W) |
8500W |
| Max Amp (15sec) |
180A |
| Max Efficiency |
95% |
| Io (No load A) |
4.4A |
| Rm (Resistance) |
0.0218Ohm |
| Shaft Diameter |
10mm |
| Gearbox |
N/A |
| Motor Diameter |
119mm |
| Motor Length |
83.5mm |
| Motor Weight |
1850g |
| Built in Fan |
Yes |
| Max Rpm |
7,000 |
| Poles/Stator |
28/24 |
| Case |
Outrunner |
| ESC Timing |
20 deg |
| ESC Switching Freq. |
8kHz |
Hardened steel shaft, 30mm oversize bearing, bolt-on prop adapter, integrated cooling fan and pre-installed
Jeti telemetry sensors represent the highest level of quality.
| Model type |
Motor |
Controller |
Battery |
Prop |
Power/A/RPM |
| Aerobatic/3D |
E105/20-135 |
Esprit Elite 125HV |
7000 12S Li-poly |
30x10 Fiala |
4350W/98A/4900 |
| Scale 45 lbs./20kg |
E105/20-135 |
Esprit Elite 165HV |
7000 12S Li-poly |
32x10 Fiala |
5350W/120A/4700 |
| Scale 55 lbs./25kg |
E105/20-135 |
Esprit Elite 165HV |
7000 14S Li-poly |
32x10 Fiala |
7500W/145A/5150 |
| Aerobatic 100-120cc |
E105/20-135 |
Esprit Elite 165HV |
7000 14S Li-poly |
28x12 Fiala |
6750W/130A/5500 |
|
| |
|
