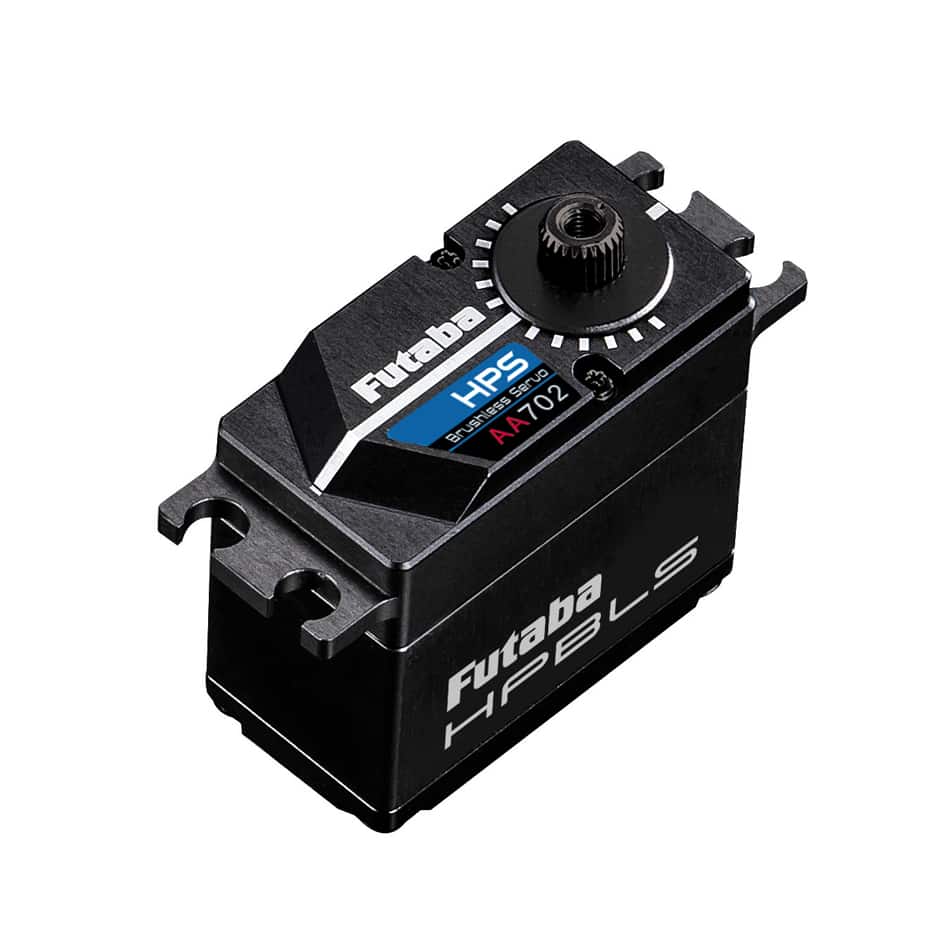

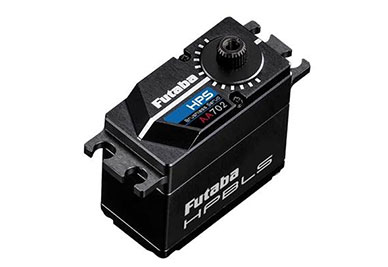

Futaba S.Bus2 HPS AA702 High Speed Torque Standard 7.4V Brushless Servo
|
|
|
| Servo |
Futaba HPS AA702 |
| Manufacturer |
Futaba |
| Applications |
Airplanes 7.4V (2S) |
| Type |
Monster Torque/S.Bus2 |
| Torque 6.6V |
513.86 oz/in (37 kg/cm) |
| Torque 7.4V |
569.41 oz/in (41 kg/cm) |
| Speed 6.6V |
0.08 sec/60 degrees |
| Speed 7.4V |
0.075 sec/60 degrees |
| Dimensions |
40.5mm x 21mm x 39.4mm |
| Weight |
80g |
| Bearings |
Dual Ball Bearing |
| Gear Type/Spline |
Stainless Steel/25T (Futaba) |
The HPS AA702 is programmable servo using S.Bus2 technology allowing you adjust many parameters. All S.Bus2 servos can be connected to conventional receivers with standard PWM modulation.
|
| |
