Graupner HBM 660 BBMG High Torque Metal Mini 7.4V Brushless Servo (16mm)

Part: GRSJS4070

Price: $80.00
In Stock: 10
Graupner HBM 660 BBMG High Torque Metal Mini 7.4V Brushless Servo (16mm)
Servo HBM 660 BBMG
Manufacturer Graupner/SJ Propo
Applications Heli/Airplanes 7.4V (2S)
Type High Voltage Digital Mini
Torque 6V 100 oz/in (7.2 kg/cm)
Torque 7.4V 120.8 oz/in (8.7 kg/cm)
Speed 6V 0.16 sec/60 degrees
Speed 7.4V 0.13 sec/60 degrees

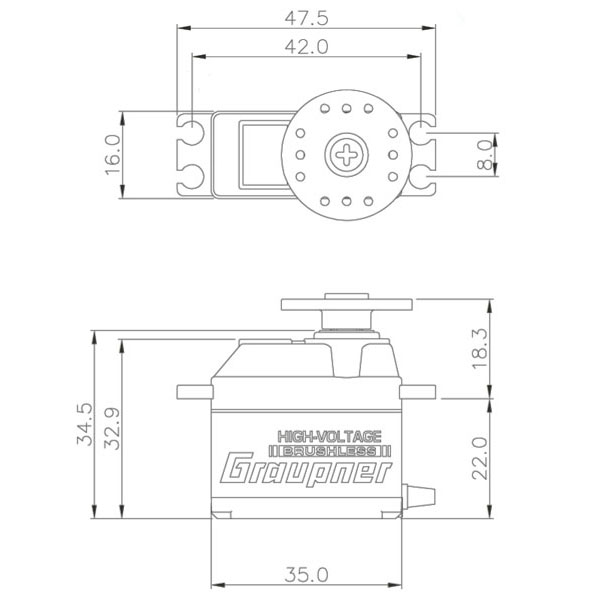

Dimensions 35mm x 16mm x 34.5mm
Weight 43g
Bearings Dual Ball Bearing
Gear Type/Spline Metal/25T (Futaba)

Equipped with all-metal parts, the Graupner HBM 660 BBMG Torque High-Voltage Brushless Digital Servo provides a high level of reliability under extreme conditions with consistent control input performance. Optimized for high voltage (7.4V), all the HBM servos are specially designed around a high performance brushless motor, precision cut metal gears, metal heat sink and metal case. The HBM servos provide speed and holding power with low dead band technology for extra reliability and can be programmed to your unique specifications with our PC-based servo software.

Graupner HBM servos utilize a standard 25 tooth (Futaba) output spline for maximum compatibility with the large variety of aftermarket control horns.

Graupner HBM 660 BBMG High Torque Metal Mini 7.4V Brushless Servo (16mm)
