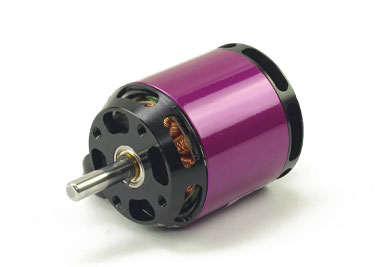

Hacker A30 10XL Outrunner Brushless Motor V4 |
Part: HACA30-10XLV4
|
|
|
|
A30 Outrunner Series |
A30 10XL V4 |
| Kv (rpm/V) |
900 |
| Max Power (W) |
650W |
| Max Amp (15sec) |
50A |
| Max Efficiency |
85% |
| Io (No load A) |
1.9A |
| Rm (Resistance) |
0.024Ohm |
| Shaft Diameter |
5mm |
| Motor Diameter |
37.2mm |
| Motor Length |
45mm |
| Motor Weight |
177g |
| Built in Fan |
Yes |
| Max Rpm |
18,000 |
| Poles |
14 |
| Case |
Outrunner |
| ESC Timing |
20-25 deg |
| ESC Switching Freq. |
8-16kHz |
| Model type |
Model name |
Motor |
Controller |
Cells |
Prop |
| Hotliner 2m |
Twister |
A30 10XL |
Jeti Advance 40 |
2700 3S Li-poly |
14x9 Folding |
| Scale/3D |
AJ Slick 51
| A30 10XL |
Jeti Spin Pro 55 |
3300 4S Li-poly |
14x7 E-Prop |
| Pattern .30 |
WM Zen 30 |
A30 10XL |
Jeti Spin Pro 55 |
4000 4S Li-poly |
11x8.5 E-Prop |
|
| |
|
Price:
$75.00
In Stock: 36
|
|
|
Price:
$79.00
In Stock: 47
|
|
|
Price:
$89.00
In Stock: 28
|
|
|
Price:
$99.00
In Stock: 27
|
|
