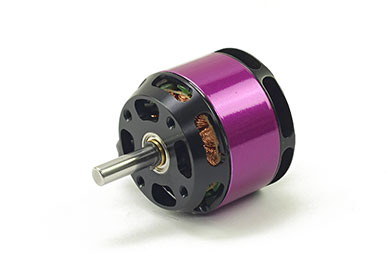

Hacker A30 12M Outrunner Brushless Motor V4 |
Part: HACA30-12MV4
|
|
|
|
A30 Outrunner Series |
A30 12M V4 |
| Kv (rpm/V) |
1370 |
| Max Power (W) |
350W |
| Max Amp (15sec) |
35A |
| Max Efficiency |
85% |
| Io (No load A) |
2.2A |
| Rm (Resistance) |
0.022Ohm |
| Shaft Diameter |
5mm |
| Motor Diameter |
37.2mm |
| Motor Length |
33mm |
| Motor Weight |
104g |
| Built in Fan |
Yes |
| Max Rpm |
18,000 |
| Poles |
14 |
| Case |
Outrunner |
| ESC Timing |
20-25 deg |
| ESC Switching Freq. |
8-16kHz |
| Model type |
Model name |
Motor |
Controller |
Cells |
Prop |
| Sport |
GP Super Sportster |
A30 12M |
Jeti Advance 30 |
2700 3S Li-poly |
10x5 E-Prop |
| Pylon Racer |
FunJet Ultra |
A30 12M |
Jeti Advance 40 |
2700 3S Li-poly |
9x6 E-Prop |
|
| |
|
Price:
$59.00
In Stock: 54
|
|
|
Price:
$79.00
In Stock: 47
|
|
|
Price:
$69.00
In Stock: 35
|
|
|
Price:
$89.00
In Stock: 28
|
|
