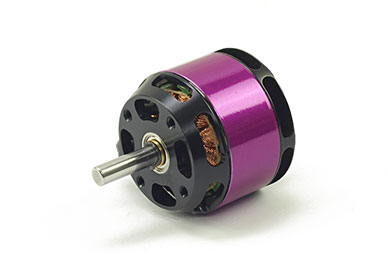

Hacker A30 16M Outrunner Brushless Motor V4

Part: HACA30-16MV4

Price: $75.00
In Stock: 1
Hacker A30 12M Outrunner Brushless Motor V4
A30 Outrunner Series
A30 16M V4
Kv (rpm/V) 1060
Max Power (W) 350W
Max Amp (15sec) 35A
Max Efficiency 85%
Io (No load A) 1.6A
Rm (Resistance) 0.038Ohm
Shaft Diameter 5mm
Motor Diameter 37.2mm
Motor Length 33mm
Motor Weight 104g
Built in Fan Yes
Max Rpm 18,000
Poles 14
Case Outrunner
ESC Timing 20-25 deg
ESC Switching Freq. 8-16kHz

Model type Model name Motor Controller Cells Prop
Aerobatic/3D Katana Mini A30 16M Jeti Advance 40 1800 3S Li-poly 11x6 E-Prop
Aerobatic/3D Dandy A30 16M Jeti Advance 30 2100 3S Li-poly 10x5 E-Prop
Sailplane 2m Variant II A30 16M Jeti Advance 30 2700 3S Li-poly 11x7 Folding


Hacker A30 12M Outrunner Brushless Motor V4



Related Products:

Jeti Advance 30 Pro SB Brushless ESC
Price: $59.00    In Stock: 54
Jeti Advance 30 Pro SB Brushless ESC
Jeti Advance 40 Pro SB Brushless ESC
Price: $79.00    In Stock: 47
Jeti Advance 40 Pro SB Brushless ESC
Jeti Spin Pro 33 Brushless ESC with Telemetry
Price: $69.00    In Stock: 35
ratingratingratingratingrating
Jeti Spin Pro 33 Brushless ESC with Telemetry
Jeti Spin Pro 44 Brushless ESC with Telemetry
Price: $89.00    In Stock: 28
Jeti Spin Pro 44 Brushless ESC with Telemetry

Product Reviews:

(2 Ratings, 1 Review) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
Power to Weight is Awesome!
Mark Latanzi (Lancaster, CA) 5/2/2015 11:49 PM
This motor has been my secret weapon for many upgrades and is nothing short of amazing. The power is on par with many .15 and .25 size motors but the 104g of weight is so much less than the other motors it's amazing! When upgrading you gain no weight but double your power. I currently run this motor on a Multiplex Solius, Fun Cub, and AcroMaster paired with Castle Edge Lite 50 ESC's my Planes simple tear it up! I have not found another motor which can match the power to weight in this price range.
