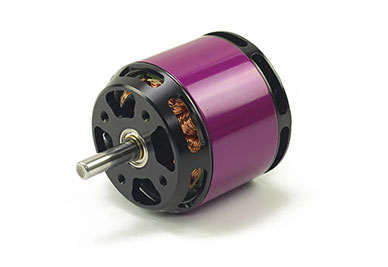

Hacker A40 14S Outrunner Brushless Motor V4 |
Part: HACA4010SV4
|
|
|
|
| A40 Outrunner Series |
A40 14S V4 |
| Kv (rpm/V) |
530 |
| Max Power (W) |
900W |
| Max Amp (15sec) |
55A |
| Max Efficiency |
87% |
| Io (No load A) |
0.95A |
| Rm (Resistance) |
0.04Ohm |
| Shaft Diameter |
5mm |
| Motor Diameter |
42mm |
| Motor Length |
41.3mm |
| Motor Weight |
200g |
| Built in Fan |
Yes |
| Max Rpm |
12,000 |
| Poles |
14 |
| Case |
Outrunner |
| ESC Timing |
20-25 deg |
| ESC Switching Freq. |
8-16kHz |
| Model type |
Model name |
Motor |
Controller |
Cells |
Prop |
| Aerobatic .40 |
3DH Extra 330SC |
A40 14S |
Jeti Spin Pro 66 |
3300 5S Li-poly |
14x7 E-Prop |
| Pattern .40 |
GP Venus 40 |
A40 14S |
Jeti Advance 70 |
4000 5S Li-poly |
13x10 E-Prop |
|
| |
|
Price:
$85.00
In Stock: 11
|
|
|
Price:
$89.00
In Stock: 23
|
|
|
Price:
$109.00
In Stock: 22
|
|
Product Reviews:
| (5 Ratings, 1 Review) |
Average Rating:
|
A40-14S used in 50E Freestyle
Allen Barbee
(Reseda, CA)
1/9/2012 12:13 PM
I have a GW MX2 50E 57" wingspan. AUW = 5.3 lbs.
CC ICE 75A, Blue lipo 5s5000mah. I switch between APCe 14x8.5 for faster flight and better hovering and a EMP 15x8 for a little more UMPH, but slower flight and shorter hovers. Works great and I get a 8 minute flight without any problems in 79 deg weather at my field (802 ft. asl). One of the support guys at ESPRIT helped me pick it out. He uses this setup on a 3DHS 59" SLICK. I have 25% remaining on my lipos when I land and even doing 50% hard flying, the lipos are barely warm. GREAT setup.
Thanks, Esprit.
|
|
|
|
