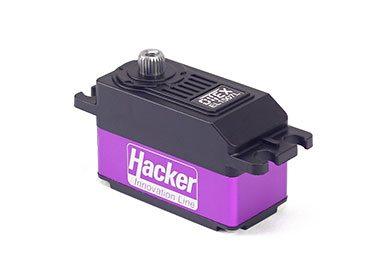

Hacker Ditex EL 1507L Coreless Speed/Torque Low Profile 7.4V Digital Servo
|
|
Servo |
Ditex EL 1507L |
Manufacturer |
Hacker |
Applications |
Heli/Airplanes 7.4V (2S) |
Type |
HV Low Profile Coreless Digital |
Torque 6V |
166.5 oz/in (12 kg/cm) |
Torque 7.4V |
208.1 oz/in (15 kg/cm) |
Speed 6V |
0.09 sec/60 degrees |
Speed 7.4V |
0.08 sec/60 degrees |

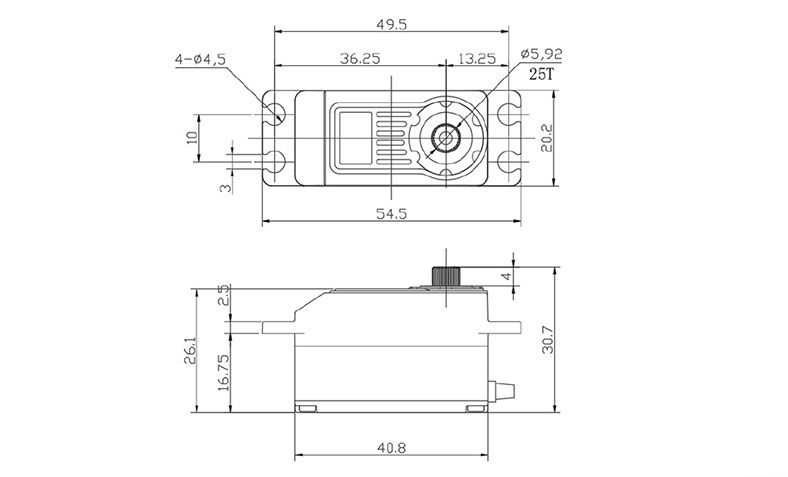

Dimensions |
40.8mm x 26mm x 20mm |
Weight |
45g |
Bearings |
Dual Ball Bearing |
Gear Type/Spline |
Steel/25T/6mm (Futaba) |
New line of servos from Hacker with its ultra-efficient Coreless motors, steel gear trains, plastic/aluminum
case, low current consumption and constant output power are the perfect match for almost any high performance
or racer pilot. Operational voltage: 4.8V - 8.4V
Hacker Ditex servos utilize a standard 25 tooth (Futaba) output spline for maximum compatibility
with the large variety of aftermarket control horns.
|
|
