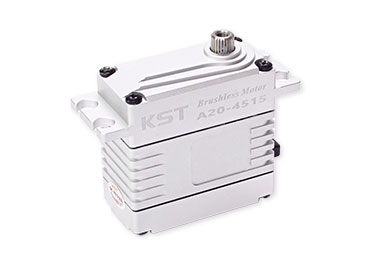

KST A20-4515 Ultra High Torque Speed Standard 8.4V Brushless Servo
|
|
|

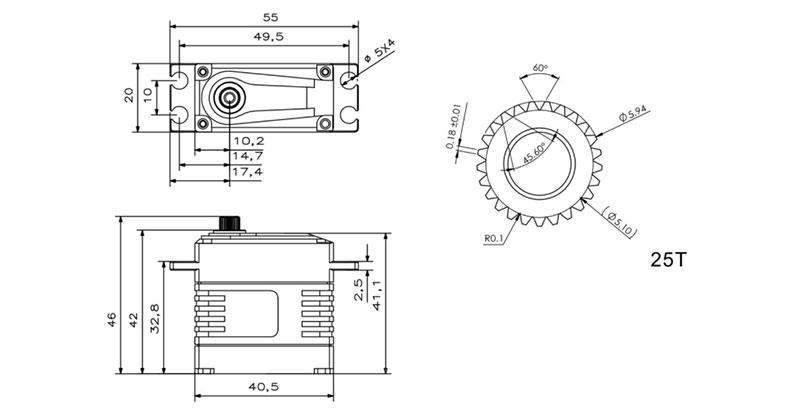

| Servo | KST A20-4515 | | Manufacturer | KST Technology | | Applications | Heli/Airplanes 7.4V (2S) | | Type | HV Brushless Digital | | Torque 6V | 499.5 oz/in (36 kg/cm) | | Torque 7.4V | 624.2 oz/in (45 kg/cm) | | Torque 8.4V | 693.5 oz/in (50 kg/cm) | | Speed 6V | 0.19 sec/60 degrees | | Speed 7.4V | 0.15 sec/60 degrees | | Speed 8.4V | 0.13 sec/60 degrees | | Dimensions | 42mm x 40.5mm x 20mm | | Weight | 80g | | Bearings | Dual Ball Bearing | | Gear Type/Spline | Steel/25T/6mm (Futaba) | New line of servos from KST Technology with its ultra-efficient Brushless motors, steel gear trains, aluminum case, low current consumption and constant output power are the perfect match for almost any high performance or racer pilot. Operational voltage: 4.8V - 8.4V KST Technology servos utilize standard 25 tooth (Futaba) output spline for maximum compatibility with the large variety of aftermarket control horns. |
| |
