KST DS589MG Coreless High Speed Mini 8.4V Digital Servo (15mm)


Price: $65.00
In Stock: 15
Part: KST-DS589
Back In Stock Notification

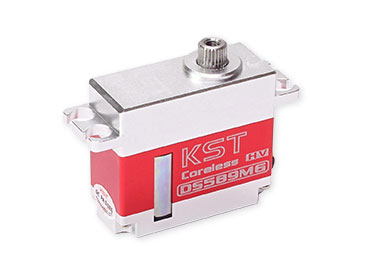

KST DS589MG Coreless High Speed Mini 8.4V Digital Servo (15mm)
Servo KST DS589MG
Manufacturer KST Technology
Applications Heli/Airplanes 7.4V (2S)
Type HV Coreless Digital Mini
Torque 6V 90 oz/in (6.5 kg/cm)
Torque 7.4V 111 oz/in (8 kg/cm)
Torque 8.4V 128 oz/in (9.2 kg/cm)
Speed 6V 0.10 sec/60 degrees
Speed 7.4V 0.09 sec/60 degrees
Speed 8.4V 0.08 sec/60 degrees
Dimensions 31mm x 35.5mm x 15mm
Weight 40g
Bearings Dual Ball Bearing
Gear Type/Spline Steel/25T/6mm (Futaba)

New line of servos from KST Technology with its ultra-efficient Coreless motors, steel gear trains, aluminum case, low current consumption and constant output power are the perfect match for almost any high performance or racer pilot. The KST DS589MG a similar size and torque as the well regarded MKS HV737 and better performance and value. Operational voltage: 4.8V - 8.4V

KST Technology servos utilize standard 25 tooth (Futaba) output spline for maximum compatibility with the large variety of aftermarket control horns.
