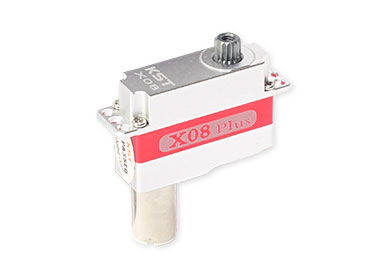

KST X08 Plus High Torque Coreless Micro Slim LV/HV Digital Servo (8mm)


Price: $55.00
In Stock: 8
Part: KST-X08-Plus
Back In Stock Notification
KST X08 Plus High Torque Coreless Micro Slim LV/HV Digital Servo (8mm)
Servo KST X08 Plus
Manufacturer KST Technology
Applications DLG/Airplanes 3.8V/8.4V (1S/2S)
Type LV/HV Coreless Micro
Torque 3.8V 33.3 oz/in (2.4 kg/cm)
Torque 6V 53.4 oz/in (3.85 kg/cm)
Torque 8.4V 73.5 oz/in (5.3 kg/cm)
Speed 3.8V 0.18 sec/60 degrees
Speed 6V 0.12 sec/60 degrees
Speed 8.4V 0.09 sec/60 degrees
Dimensions 27.1mm x 23.5mm x 8mm
Weight 9g
Bearings Dual Ball Bearing
Gear Type/Spline Steel/15T/3.9mm (Futaba)

New line of servos from KST Technology with its ultra-efficient Coreless motors, steel gear trains, aluminum case, low current consumption and constant output power are the perfect match for almost any high performance or racer pilot. Operational voltage: 4.8V - 8.4V

KST Technology servos utilize mini 15 tooth (Futaba) output spline for maximum compatibility with the large variety of aftermarket control horns.

KST X08 Plus High Torque Coreless Micro Slim LV/HV Digital Servo (8mm)
