KST X15-1208 Coreless High Torque Mini 8.4V Digital Servo (15mm)

Servo	KST X15-1208
Manufacturer	KST Technology
Applications	Heli/Airplanes 7.4V (2S)
Type	HV Coreless Digital Mini
Torque 6V	136 oz/in (9.8 kg/cm)
Torque 7.4V	166.4 oz/in (12 kg/cm)
Torque 8.4V	187.3 oz/in (13.5 kg/cm)
Speed 6V	0.10 sec/60 degrees
Speed 7.4V	0.08 sec/60 degrees
Speed 8.4V	0.07 sec/60 degrees

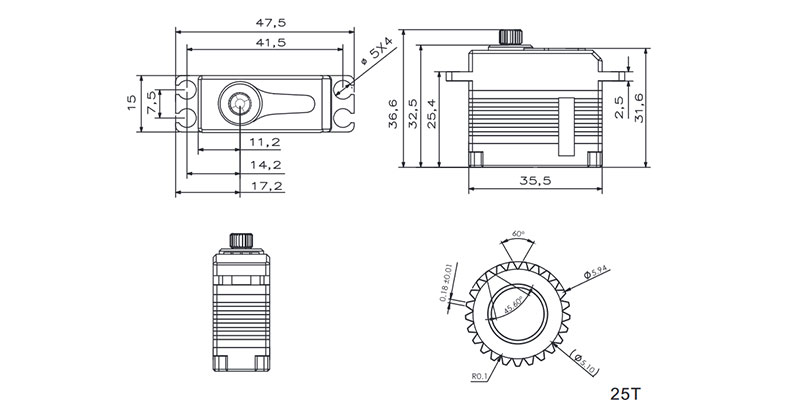

Dimensions	32.5mm x 35.5mm x 15mm
Weight	40g
Bearings	Dual Ball Bearing
Gear Type/Spline	Steel/25T/6mm (Futaba)

New line of servos from KST Technology with its ultra-efficient Coreless motors, steel gear trains, aluminum case, low current consumption and constant output power are the perfect match for almost any high performance or racer pilot. Operational voltage: 4.8V - 8.4V

KST Technology servos utilize standard 25 tooth (Futaba) output spline for maximum compatibility with the large variety of aftermarket control horns.
