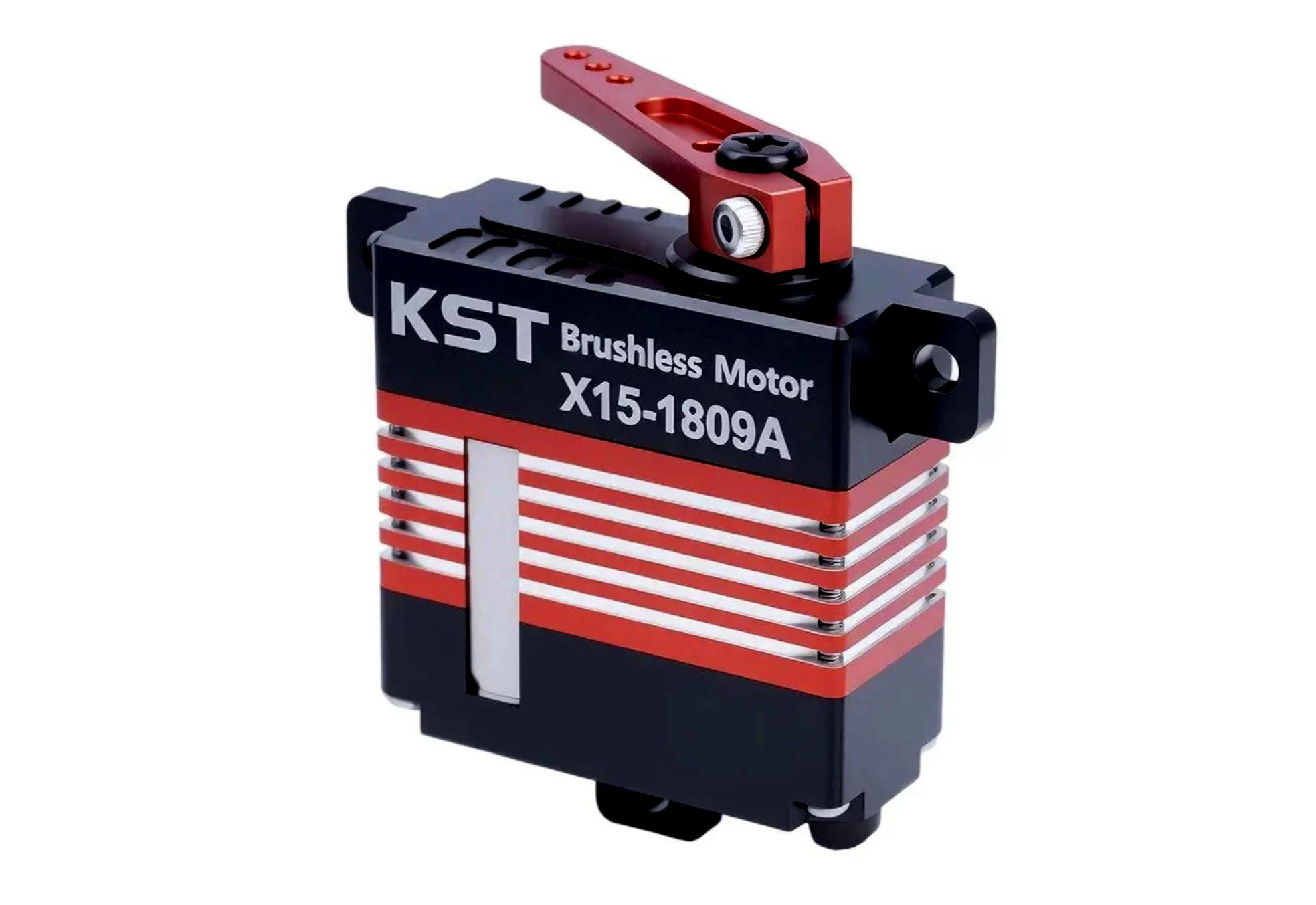

KST X15-1809A Ultra High Torque Speed Thin 8.4V Brushless Servo (15mm)

Servo	KST X-15-1809A
Manufacturer	KST Technology
Applications	Heli/Airplanes 7.4V (2S)
Type	HV Brushless Digital Thin
Torque 6V	249.62 oz/in (18 kg/cm)
Torque 7.4V	305.10 oz/in (22 kg/cm)
Torque 8.4V	332.83 oz/in (24 kg/cm)
Speed 6V	0.09 sec/60 degrees
Speed 7.4V	0.08 sec/60 degrees
Speed 8.4V	0.07 sec/60 degrees

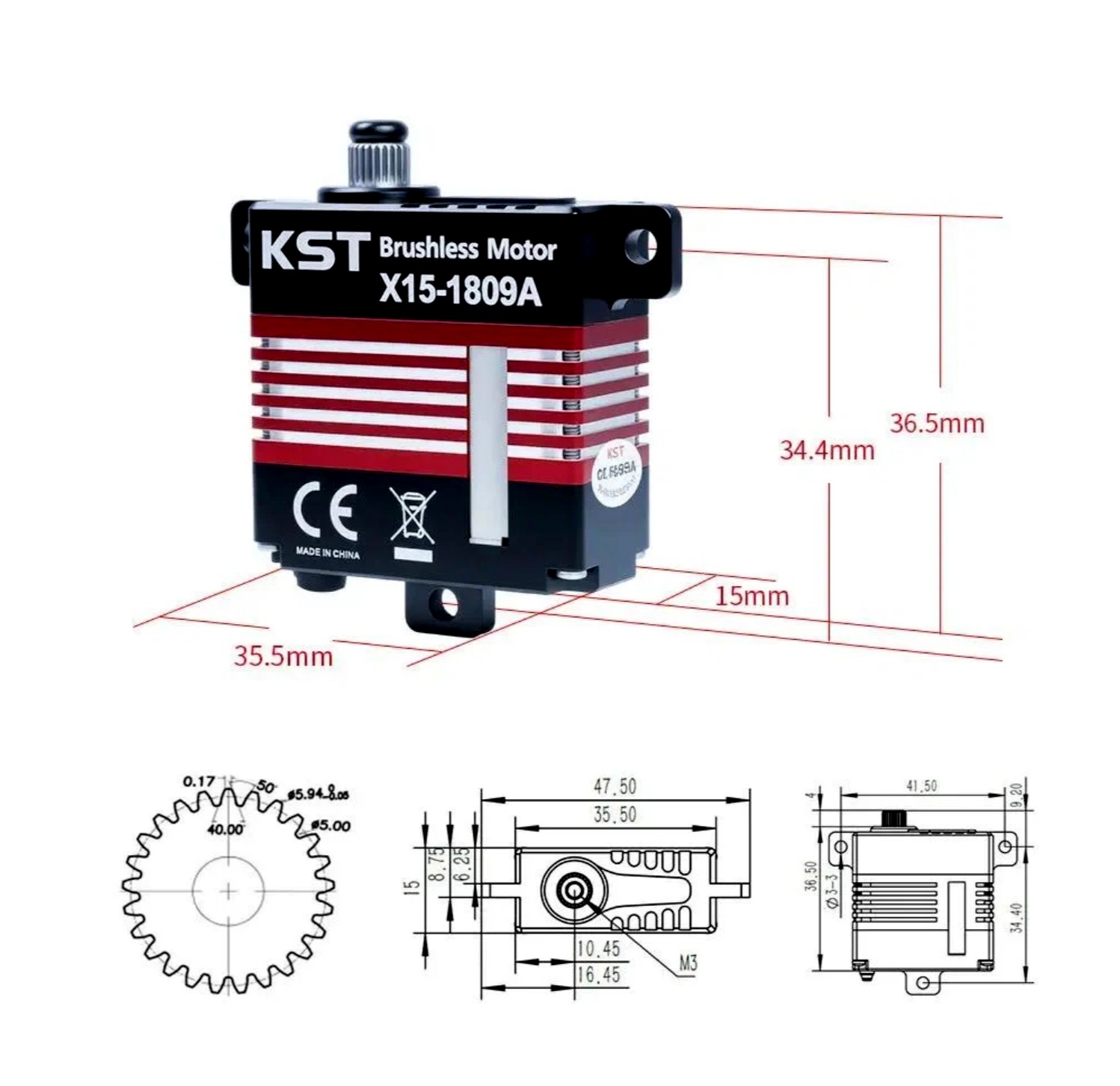

Dimensions	36.5mm x 35.5mm x 15mm
Weight	45g
Bearings	Dual Ball Bearing
Gear Type/Spline	Steel/25T/6mm (Futaba)

New line of servos from KST Technology with its Magnetic/Hall Effect sensors, ultra-efficient Brushless motors, steel gear trains, aluminum case, slow start, low current consumption and constant output power are the perfect match for almost any high performance or racer pilot. Operational voltage: 6V - 8.4V

KST Technology servos utilize mini 25 tooth (Futaba) output spline for maximum compatibility with the large variety of aftermarket control horns.
