Pulsar 4E Pro Electric Sailplane (ARF)
|
|
Wingspan: 157.5" (4000mm)
Length: 70" (1780mm)
Weight: 67-70 oz. (1895-1980g)
Channels: 4,6
Good: AXi 46/760, 15x6 folding
Better: Race 2026/3600 6.7:1, 16x8 folding
2700 4S
40mm spinner

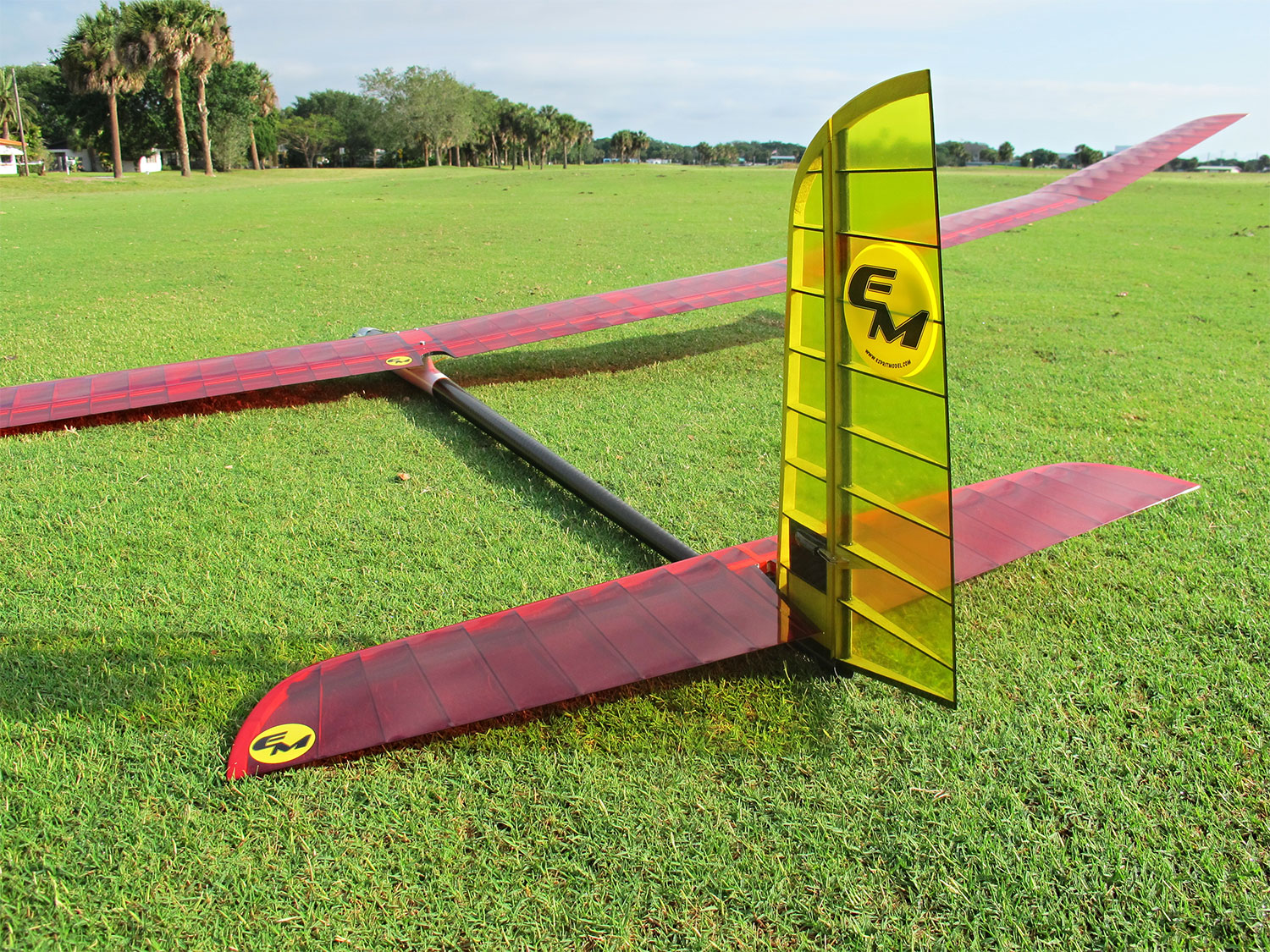

The Pulsar 4E Pro is the latest and largest addition to the ever-growing Pulsar family of
hand-made electric sailplanes. Built at our request, this model is a larger evolution of
the mid sized 2.5m Pulsar. The Pulsar 4E models use the AG25 modified airfoil designed by
Dr. Mark Drela specifically for 3m and larger thermal duration planes. Just like its
smaller cousins, the entire model is constructed using free-flight techniques. The wing
is a balsa built-up Carbon Fiber and Kevlar D-box design that utilizes carbon fiber faced
balsa ribs and carbon fiber trailing edge. The open section of the wing, as well as the
tail parts, are covered with UltraCote. The fuselage is made of white gel-coated 2.4GHz
friendly fiberglass/Kevlar with carbon fiber tapered boom and removable carbon fiber canopy.
The three piece wing and 2-piece conventional tail are each easily removable for transport and
storage. The rudder as well as elevator servos install in the vertical fin. The careful use of
composites, combined with an underlying wood structure in the wing, ensures a good light
structure that will hold its shape for a long time. This is an extremely light, high
performance model.
Virtually perfect, very well made and extremely clean. One of the most advanced addition to the
ever-growing Pulsar family of hand-made electric sailplanes.

Special Features:
- Control Surfaces: Ailerons, Elevator, Rudder and Flaps
- Kevlar 2.4GHz friendly fuselage with extended nose
- Tight covering, with all seams hand-sealed
- Elegant gel-coated white Fiberglass/Kevlar fuselage with CF tapered boom
- Highly efficient pylon mounted wing
- Ready-built Balsa/CF/Kevlar D-tube 3-piece PLUG-IN wing design
- Transparent Ultracote covered wings and tail parts
- Includes all necessary hardware
- Virtually perfect, extremely clean and well made
More Information (links):
* Building Pictures and Details
Airfoil
Wing area
Wing loading
Empty weight
: AG 25 mod.
: 1318 sq.in. (85 sg.dm)
: 7-7.5 oz/sq.ft. (22-23 g/sg.dm)
: 39 oz. (1100g)
Suggested Equipment (Sport):
(1) AXi Cyclone 46/760
(1) Jeti Advance 70 Pro SB ESC
(1) 2700 4S battery
(4) HS-85MG servo (ailerons, flaps)
(2) KST HS08-A servo (rudder, elevator)
(4) Servo frame Hitec HS-85BB/85MG/5085MG, D85MG
(1) Aeronaut Turbo 40/5/8mm folding spinner
(1) Aeronaut 15x6 folding propeller
(1) Battery connector
(2) MPX Connector set dual servos
(2) 48" Servo extension
(2) 36" Servo extension
(2) 9" Servo extension
(2) 6" Servo extension
(4) 3" Servo extension
Suggested Equipment (Power):
(1) Race 2026/3600 6.7:1
(1) Jeti Spin Pro 100 ESC
(1) 2700 4S battery
(4) KST X10-Mini servo (ailerons, flaps)
(2) KST HS08-A servo (rudder, elevator)
(4) Servo frame KST X10-Mini
(1) Aeronaut Turbo 40/6/8mm folding spinner
(1) Vitaprop CF 16x8 folding propeller
|
|
|
Price:
From $11.00 to $26.00
|
|
|
Price:
From $15.00 to $29.00
|
|
|
Price:
$145.00
In Stock: 5
|
|
|
Price:
$14.00
In Stock: 26
|
|
|
Price:
$30.00
In Stock: 22
|
|
|
Price:
$89.00
In Stock: 36
|
|
|
|
Price:
From $25.00 to $45.00
|
|
|
Price:
$50.00
In Stock: 16
|
|
|
Price:
$45.00
In Stock: 4
|
|
|
Price:
From $4.00 to $7.00
|
|
|
Price:
$10.00
In Stock: 38
|
|
|
Price:
$9.00
In Stock: 85
|
|
|
Price:
From $30.00 to $65.00
|
|
|
|
Price:
$145.00
In Stock: 10
|
|
Product Reviews:
(1 Rating, 1 Review) |
Average Rating:
|
very easy to fly
David Harris
(Millersville, PA)
6/1/2013 6:25 PM
I am very happy wifh the fit and finish of my Pulsar 4E. Since there are no instfuctions you should be experienced at installing all the components to finish this plane. You can find info on web but you need at a minimum, intermddiatd buliding skills.
The Pulsar is esay to fly, very responsive to lift and turn input. I am very happy.
|
|
|
